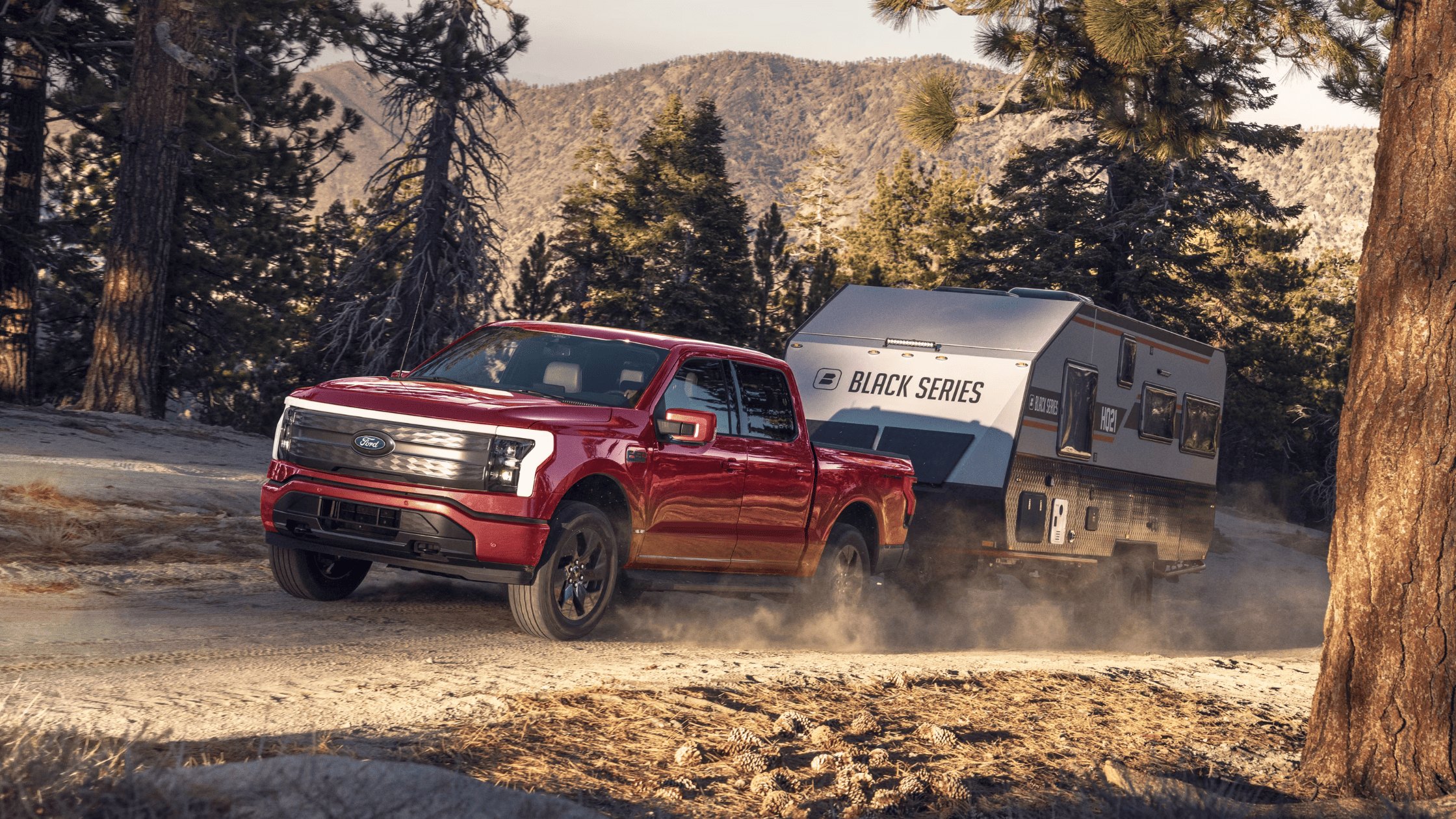

2024 Ford F-150® Lightning in Shaker Heights, OH
The 2024 Ford F-150® Lightning serves as an electric extension of the long-standing Ford F-150® series, built with purpose and configured for performance-driven utility. It is engineered with a dual-motor system, high-capacity lithium-ion battery options, and a body designed for load-bearing durability. Designed with fleet operations and individual users in mind, this vehicle introduces electric capability to a platform historically known for reliability and functionality. The 2024 Ford F-150® Lightning is manufactured at the Rouge Electric Vehicle Center and integrates a wide array of structural and electronic advancements.
Interior Work Surfaces and Productivity Tools
Select trims include an interior work surface with a fold-flat shifter, allowing for use of laptops and paperwork inside the cabin. A tailgate step with integrated work surface is also available. All trims include a Class IV trailer hitch. Pro Power Onboard systems provide external power generation. Standard trims include a 2.4kW system with outlets located in the cab, bed, and frunk. The 9.6kW system available on higher trims adds additional outlets and a 240V connection in the bed.
Driver Assistance and Monitoring Features
Driver assistance systems are structured in two tiers. All trims include Ford Co-Pilot360® 2.0. This suite offers pre-collision assist, blind spot monitoring with trailer coverage, lane keeping assist, rearview camera, automatic high beams, reverse sensing, reverse braking, and post-collision braking. Flash and higher trims add Co-Pilot360® Assist 2.0, with adaptive cruise control, evasive steering assist, and intersection support. Ford BlueCruise is available on select trims, providing hands-free driving in pre-mapped zones.
Chassis Structure and Exterior Configuration
The 2024 Ford F-150® Lightning uses a high-strength steel frame to support its electric powertrain. Its body panels and bed are made from military-grade aluminum alloy. The body style remains consistent with the SuperCrew four-door layout, featuring a 5.5-foot bed. Exterior dimensions include a wheelbase of 145.5 inches, total length of 232.7 inches, and a ground clearance of 8.5 inches. The front and rear track widths are nearly symmetrical at just over 68 inches, contributing to balanced road behavior and payload support.
Motor Layout and Power Output
The 2024 Ford F-150® Lightning is powered by two inboard-mounted AC motors configured to deliver power to all four wheels. These motors are located on the front and rear axles. The standard output provides 452 horsepower, while the extended-range version increases peak horsepower to 580. Both setups deliver up to 775 lb-ft of torque.
Battery Architecture and Energy Management
The vehicle offers two battery systems, both using lithium-ion pouch cells with liquid cooling and internal battery management. The standard-range battery has 98 kWh of usable capacity. The extended-range battery increases usable capacity to 131 kWh. Energy output and input through the onboard charger vary between the two systems. The standard version operates at 11.3 kW input and 10.5 kW output. The extended-range system, for fleet use, supports up to 19.2 kW input and 17.6 kW output when using the 80-amp charging unit.
Charging Methods and Estimated Durations
The 2024 Ford F-150® Lightning supports Level 2 and Level 3 charging. Using a DC fast charger at 150 kW or higher, the battery can be charged from 15 percent to 80 percent in approximately 32 minutes for the standard-range configuration and 38 minutes for the extended-range. Level 2 home charging using an 80-amp unit requires approximately 13 hours for a full charge. With a 48-amp connected station, the charging time extends to 13 hours for the extended-range system. The 30-amp mobile charger completes a full charge in up to 20 hours. Energy intake also reflects usage patterns. A 10-minute DC fast charge delivers an estimated 62 to 65 miles of range. A one-hour connection to either the 80-amp or 48-amp charging system adds approximately 20 miles of range.
Cargo, Towing, and Payload Ratings
Cargo capacity is divided between the 5.5-foot bed and the front trunk. The bed offers 52.8 cubic feet of storage, while the frunk adds 14.1 cubic feet. The front trunk includes power outlets and weather-sealed security. The standard-range version allows for a maximum payload of 2,235 pounds and a base towing capacity of 5,000 pounds. Towing increases to 7,700 pounds with the Max Trailer Tow Package. Extended-range models raise base towing capacity to 7,700 pounds, with Flash and Lariat® trims capable of reaching 10,000 pounds when properly equipped. The Platinum trim reaches a maximum of 8,500 pounds with the same package. Payload ratings vary depending on configuration and accessory use.
Suspension Design and Ride Dynamics
The 2024 Ford F-150® Lightning uses an independent suspension system at both front and rear. The front suspension is a double-wishbone layout with coil-over shocks and a stabilizer bar. Rear suspension includes semi-trailing arms with coil springs and twin-tube dampers. Both front and rear systems use heavy-duty gas pressurized shocks for improved load support and vibration control under varying conditions.
Cabin Dimensions and Seating Configuration
Interior measurements reflect full-size truck standards. Front occupants have access to 40.8 inches of headroom and up to 43.9 inches of legroom. Rear seat passengers receive 40.4 inches of headroom and up to 43.6 inches of legroom. Shoulder and hip room are nearly identical in both rows, providing consistent comfort across all seating positions. Seating materials range from vinyl to premium leather depending on trim. Standard seats offer manual adjustments, while mid and upper trims include power-adjustable configurations, memory features, and ventilation functions.
Infotainment and Digital Interfaces
Digital interfaces include SYNC® 4 or SYNC® 4A systems, depending on trim level. Base configurations use a 12-inch horizontal touchscreen. Flash and above feature a 15.5-inch vertical touchscreen with enhanced visual layout and haptic feedback. Standard wireless integration supports Apple CarPlay and Android Auto™. Over-the-air software updates allow the system to receive performance improvements and additional features remotely. All trims include a 12-inch productivity screen in place of a traditional instrument cluster.
Navigation and Remote Access Systems
Navigation is included across all trims as a connected feature using FordPass. It provides real-time traffic updates and integrated route planning. Remote access and diagnostics are managed through the FordPass® Connect system. Wi-Fi capability supports up to ten devices. Certain trims include Phone as a Key functionality, allowing access and start-up using a compatible smartphone.
Lighting and Visibility Tools
Standard lighting systems include LED projector headlights with dynamic bending and signature lighting. Tail lamps are LED-based, and upper trims add signature light bars on the front and tailgate. Zone lighting is available on higher trims, allowing directional control for improved visibility during nighttime tasks. Rear lighting supports bed access and tailgate operation.
Security, Connectivity, and Monitoring Systems
Security features include perimeter alarms, SecuriCode keyless entry keypad, and FordPass® Trailer Theft Alert. All trims are equipped with multiple airbags, a tire pressure monitoring system, and post-crash alert systems. Curve Control and AdvanceTrac with roll stability control are standard for all models. Rear camera views and a 360-degree camera system assist with low-speed maneuvering and trailer alignment.
Visit Nick Mayer Ford East for a Test Ride
The 2024 Ford F-150® Lightning demonstrates what an electric pickup can deliver through well-defined systems, integrated technologies, and mechanical reliability. Key systems such as its dual eMotor drivetrain, extended-range battery, Pro Power Onboard, and driver assistance suite make it suitable for a broad range of applications. To assess its electric powertrain responsiveness, cabin layout, and real-world charging performance, schedule a test drive today. Nick Mayer Ford East in Shaker Heights, OH, provides an opportunity to experience the full range of technical features in an operational environment.
