2025 Ford Transit® near Mentor, OH
The 2025 Ford Transit® introduces a refined structure built to handle various transportation needs through functional design and mechanical flexibility. Its construction supports passenger and cargo use without compromising technical efficiency. With updated drivetrain configurations, available technology upgrades, and structural choices tailored for utility, the 2025 Ford Transit® remains consistent with its purpose-built engineering.
Cargo Capacity and Load Management

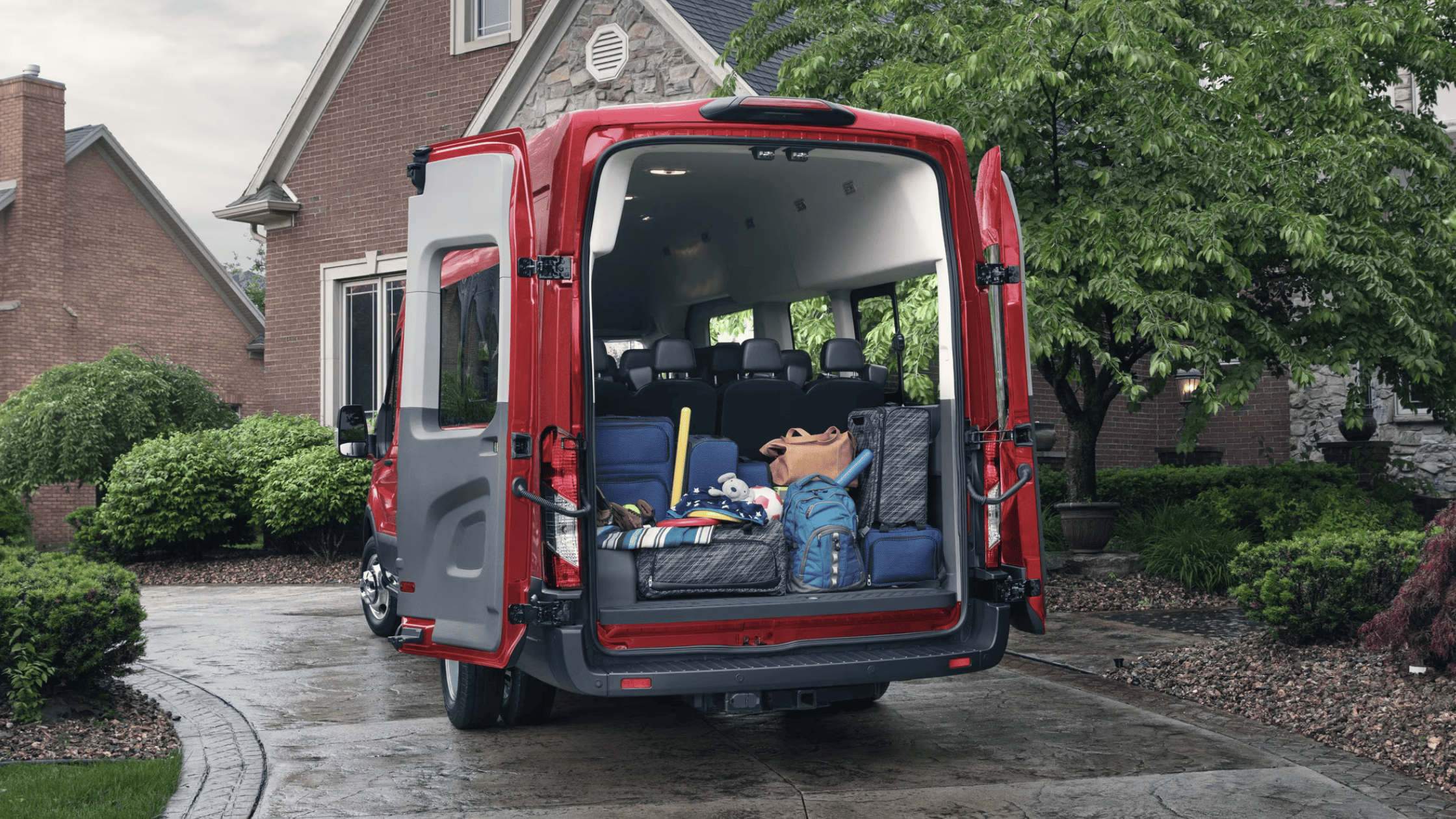

Payload performance is supported by a structural frame capable of carrying up to 3,475 pounds. Cargo loading is accommodated through a wide opening and a rear door system designed for high-clearance access. With various roof and length configurations, the 2025 Ford Transit® supports multiple load profiles without interior modifications.
The towing system permits a maximum towing capacity of 4,500 pounds when properly equipped. A Heavy-Duty Trailer Tow Package is available, which includes a frame-mounted hitch receiver, connector assemblies, rear jumper wiring, and trailer tow-specific calibrations. The system integrates with driver assistance features to improve control during trailer movement.
Trailer Sway Control works in coordination with AdvanceTrac® and Roll Stability Control™ to monitor and correct unintended trailer movement. This is achieved through selective braking and engine power adjustments. Additional towing assistance includes Trailer Coverage, which extends the Blind Spot Information System to include the length of a connected trailer, and Trailer Hitch Assist™, which uses backup camera guidance to simplify alignment procedures.
Adaptive Structure and Dimensions

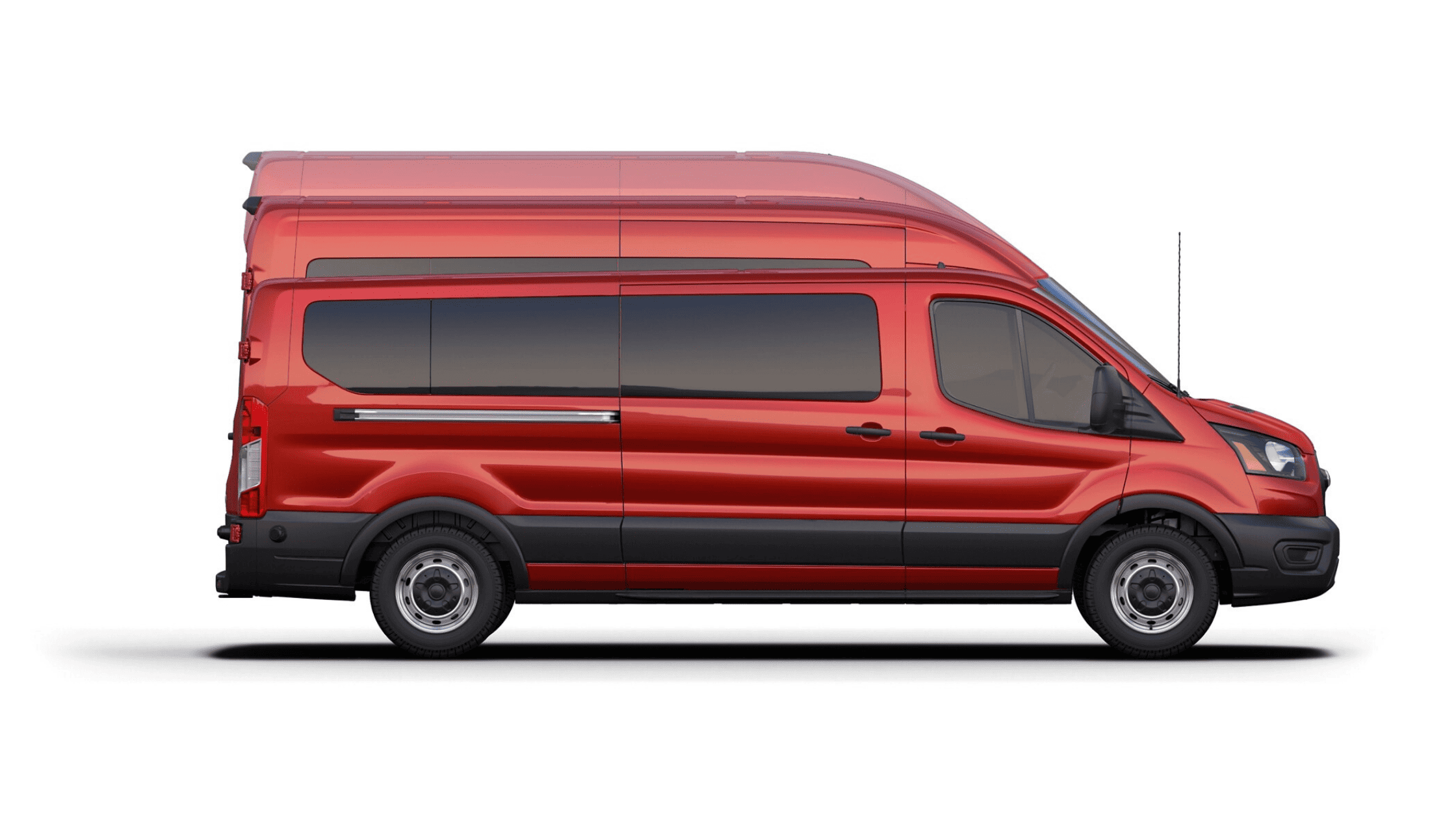

Multiple roof height and body length options are available for the 2025 Ford Transit® platform. Exterior height and cargo volume vary depending on configuration.
The Low Roof model features an exterior height of 82.4 inches and a maximum interior cargo height of 52.8 inches. It is suitable for areas with overhead limitations while still allowing for cargo movement and seated passengers.
The Medium Roof configuration provides an exterior height of 99.2 inches and increases cargo height to 67.6 inches. This setup is optimized for greater volume capacity while remaining accessible for entry and egress.
The High Roof variant reaches 108.6 inches in total height with a maximum cargo height of 77 inches. This option is designed to support tall equipment and allows standing movement inside the vehicle.
Two body lengths are also available. The long body measures 235.5 inches in exterior length and supports a total cargo volume of 349.6 cubic feet behind the first row. The extended body spans 263.9 inches and increases storage capacity to 425.4 cubic feet.

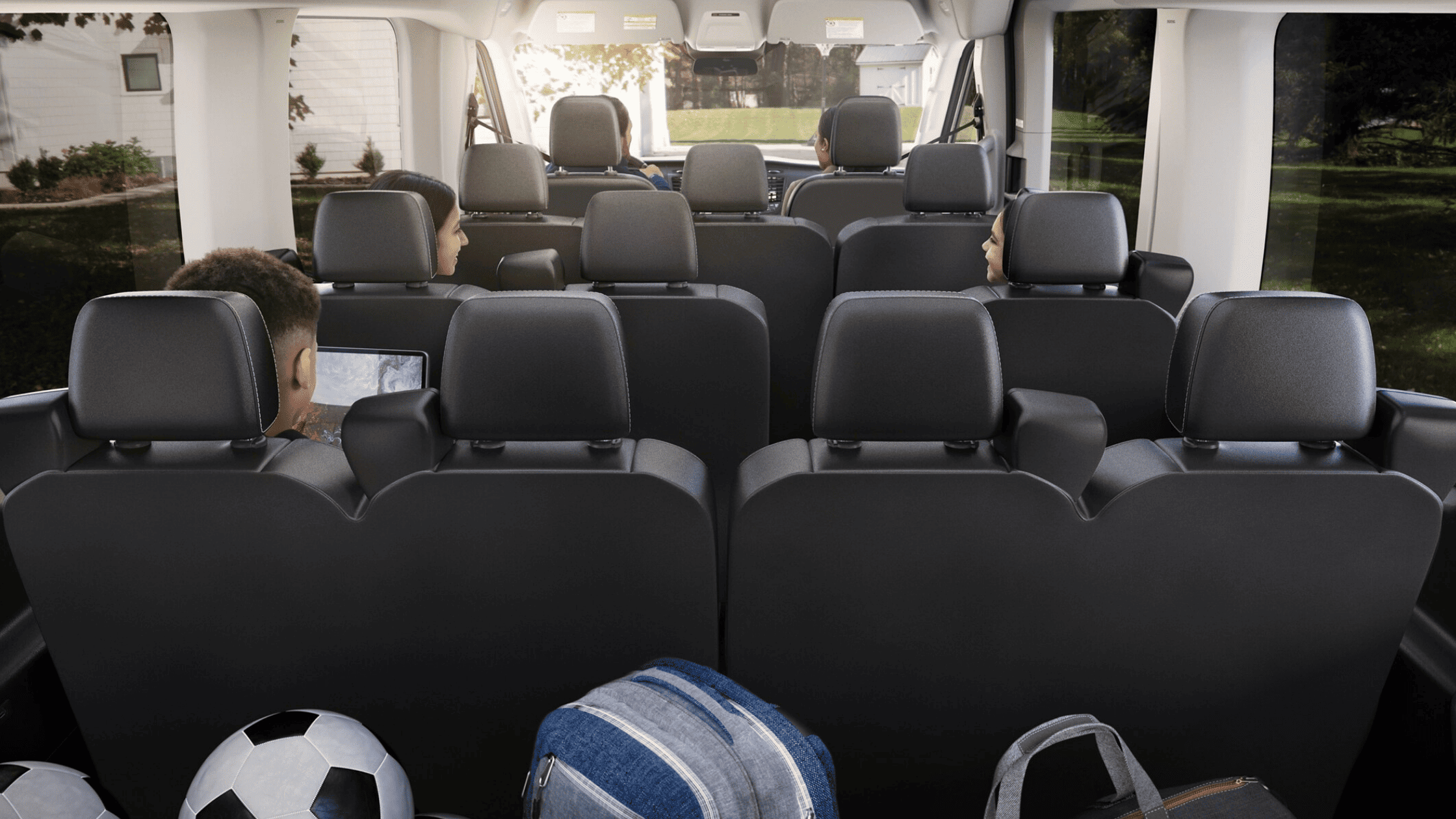

Passenger capacity ranges from two to fifteen occupants, depending on configuration. Seating options include 10-way power-adjustable heated front seats for both driver and passenger.
Functional Technology Systems
The 2025 Ford Transit® XLT trim includes a standard SYNC® 4 system with a 12-inch touchscreen interface. This system supports voice command functionality for hands-free navigation, communication, and media control. It also provides wireless integration with Apple CarPlay® and Android Auto™, allowing connection with personal devices for audio playback, calls, and app access.
Connectivity features are further supported through Ford Connected Navigation, which remains operable even when cell signals are unavailable. The system provides traffic data, gas station availability, parking guidance, Yelp reviews, and safety notifications in real time. Alexa Built-in functionality is available through Ford Premium Connectivity, enabling voice-controlled updates and navigation support.
An eight-speaker audio system enhances cabin audio for media and call clarity. The sound configuration is balanced throughout the passenger space and optimized for large vehicle acoustics.
Engine Power and Drivetrain Options
Two gasoline engine configurations are available for the 2025 Ford Transit®. The first is a 3.5-liter Port Fuel Direct Injection (PFDi) V6 engine rated at 275 horsepower and 260 lb-ft of torque. The second is a 3.5-liter EcoBoost® V6 engine delivering 310 horsepower with 400 lb-ft of torque. Both options provide reliable acceleration and load-bearing capability. The EcoBoost® variant supports additional torque performance suited for heavier operational use. Power delivery is steady through a responsive system designed for urban and highway driving.
Both engine options can be matched with the available Intelligent All-Wheel Drive system. This system improves traction during road surface changes and operates without increasing seat height or affecting the cargo load floor. Vehicle balance is maintained during sharp turns and variable terrain conditions.
The 2025 Ford Transit® includes an available extended-range fuel tank with a total capacity of 31 gallons. This system reduces the frequency of refueling stops, allowing for extended operation time between service intervals. The tank configuration is integrated without obstructing internal storage capacity or seating layouts.
Operational Visibility and Driving Assistance
Safety and assistance technologies are fully integrated across multiple systems to improve awareness, precision, and responsiveness during operation.
A 360-degree camera system provides a full external view of the van, useful for navigating confined spaces and parking lots. It is supplemented by a rear-view camera with dynamic guidelines and rear parking sensors, which issue alerts during reversing maneuvers. These systems are active at speeds up to 6 mph.
Blind Spot Assist notifies the driver of lateral traffic and objects during lane changes or reversing. Trailer Coverage extends this detection zone when towing. Enhanced Active Park Assist further reduces the need for manual steering during parallel parking by guiding vehicle alignment once a space is identified.
The Lane-Keeping System issues driver alerts upon unintentional lane departure. If continued drifting is detected, a coffee cup icon appears as a reminder to take a rest. Steering correction is not applied by the system.
Pre-Collision Assist® with Automatic Emergency Braking uses forward-facing sensors and radar to identify vehicles and pedestrians. If a potential impact is detected and the driver does not respond, braking is applied automatically.
Adaptive Cruise Control maintains consistent spacing from other vehicles based on a preset distance. The system adjusts speed as necessary without driver input, helping manage traffic flow at a steady pace.
Intelligent Speed Assist uses a forward-facing camera to detect posted speed limits. When active, it automatically adjusts the maximum speed setting to match detected signs.
Post-Collision Braking slows the vehicle after an impact to reduce further movement and lower the risk of additional collisions.
Rain-sensing windshield wipers are controlled by an infrared sensor located near the rearview mirror. When moisture is detected, the wipers activate automatically and adjust their speed accordingly.
Contact Nick Mayer Ford East to Book a Test Drive
Those interested in examining the mechanical systems, spatial design, and electronic features of the 2025 Ford Transit® can schedule a test drive to assess its operational capabilities in real conditions. With two high-output engine options, multiple body and roof configurations, and a complete suite of functional technology and safety tools, the 2025 Ford Transit® serves as a platform engineered for controlled, efficient transport. A full model demonstration is available through Nick Mayer Ford East near Mentor, OH, where the 2025 Ford Transit® can be evaluated through a hands-on driving experience.
